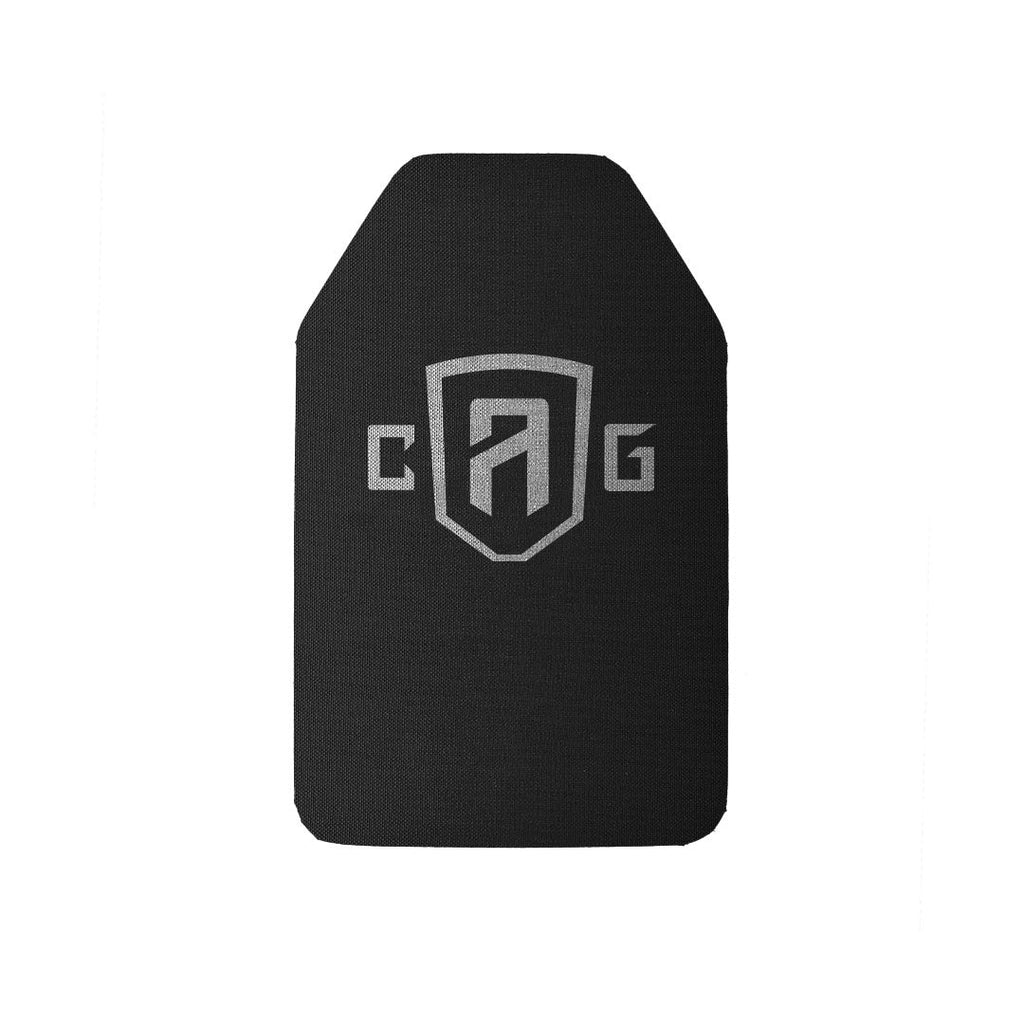

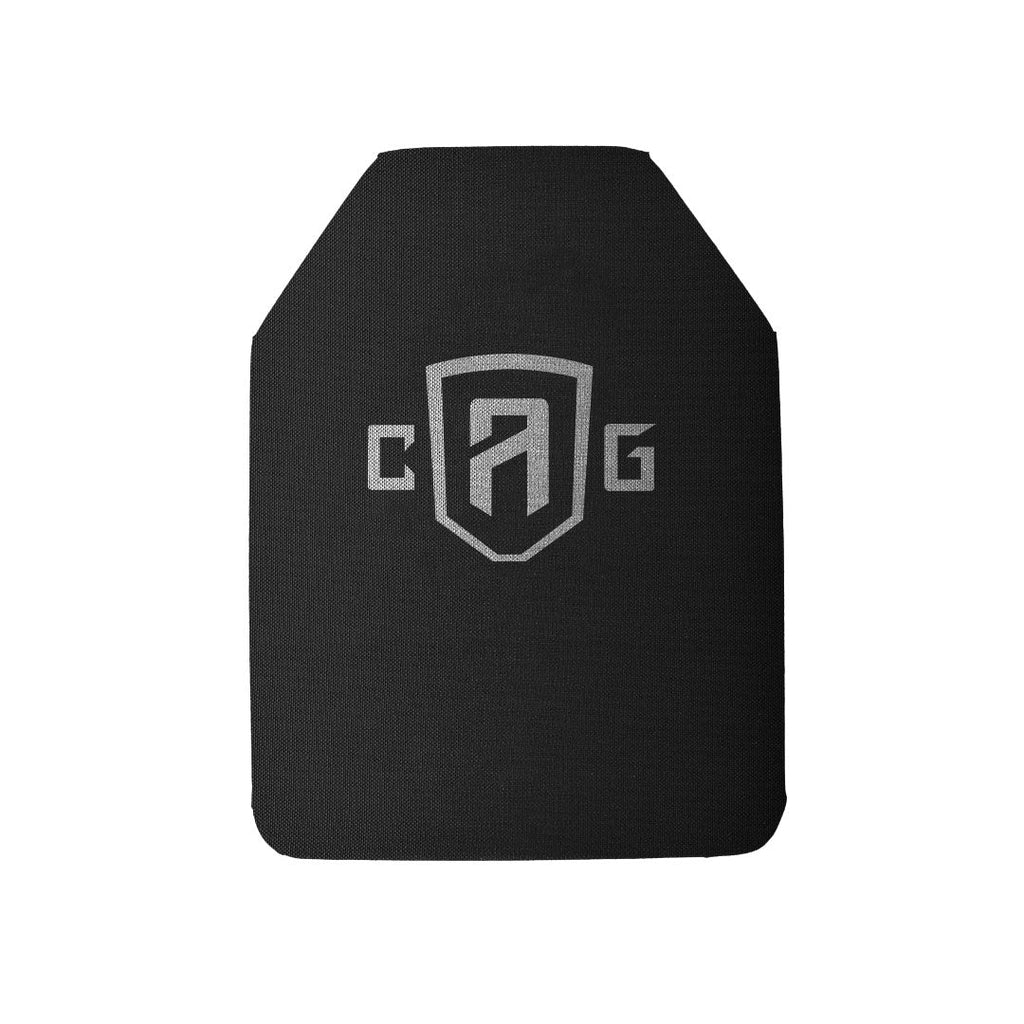

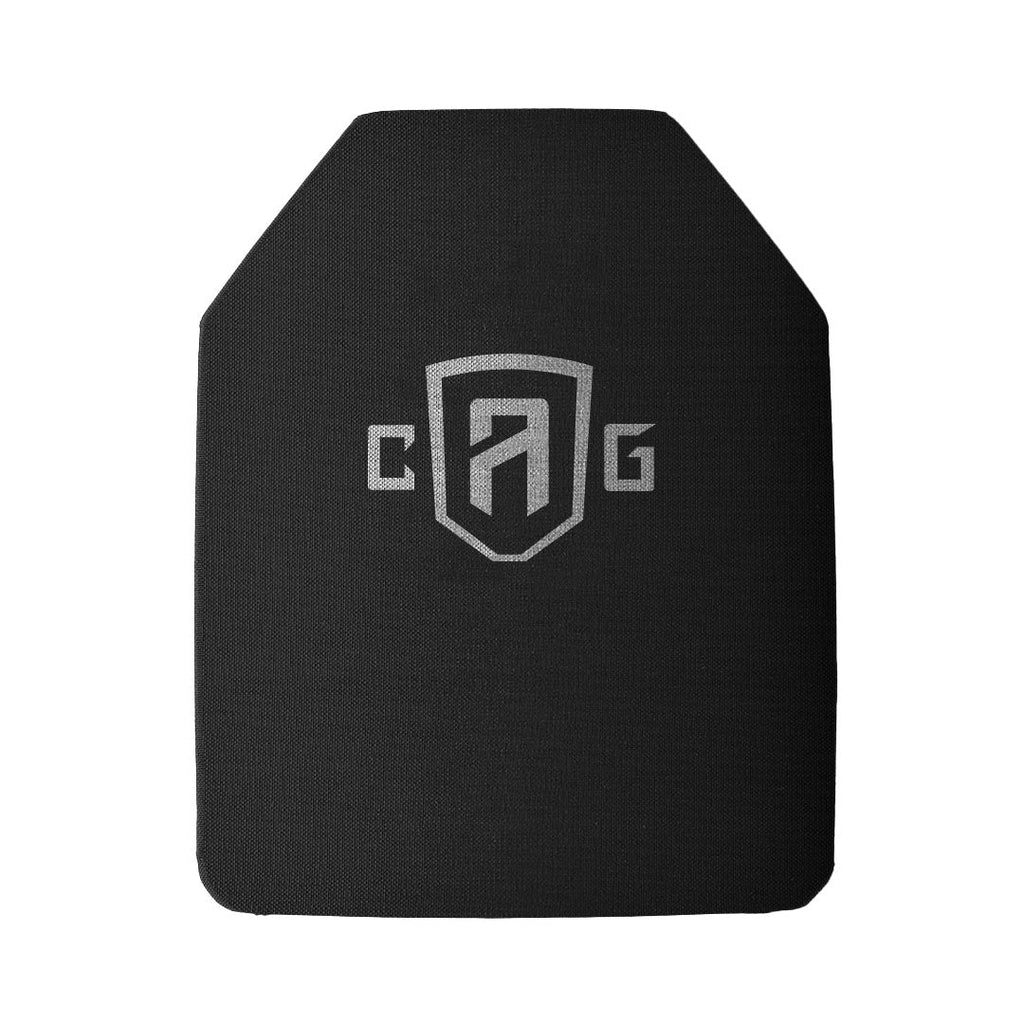

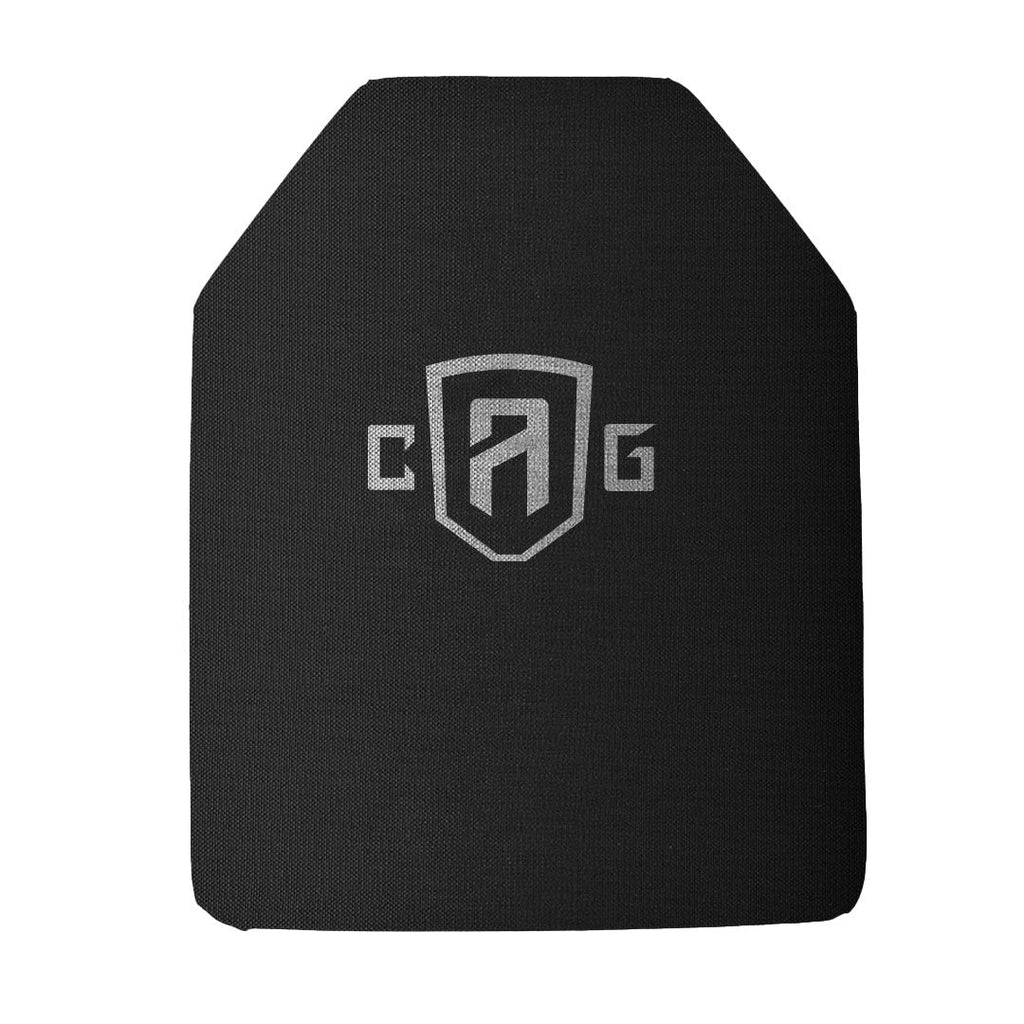

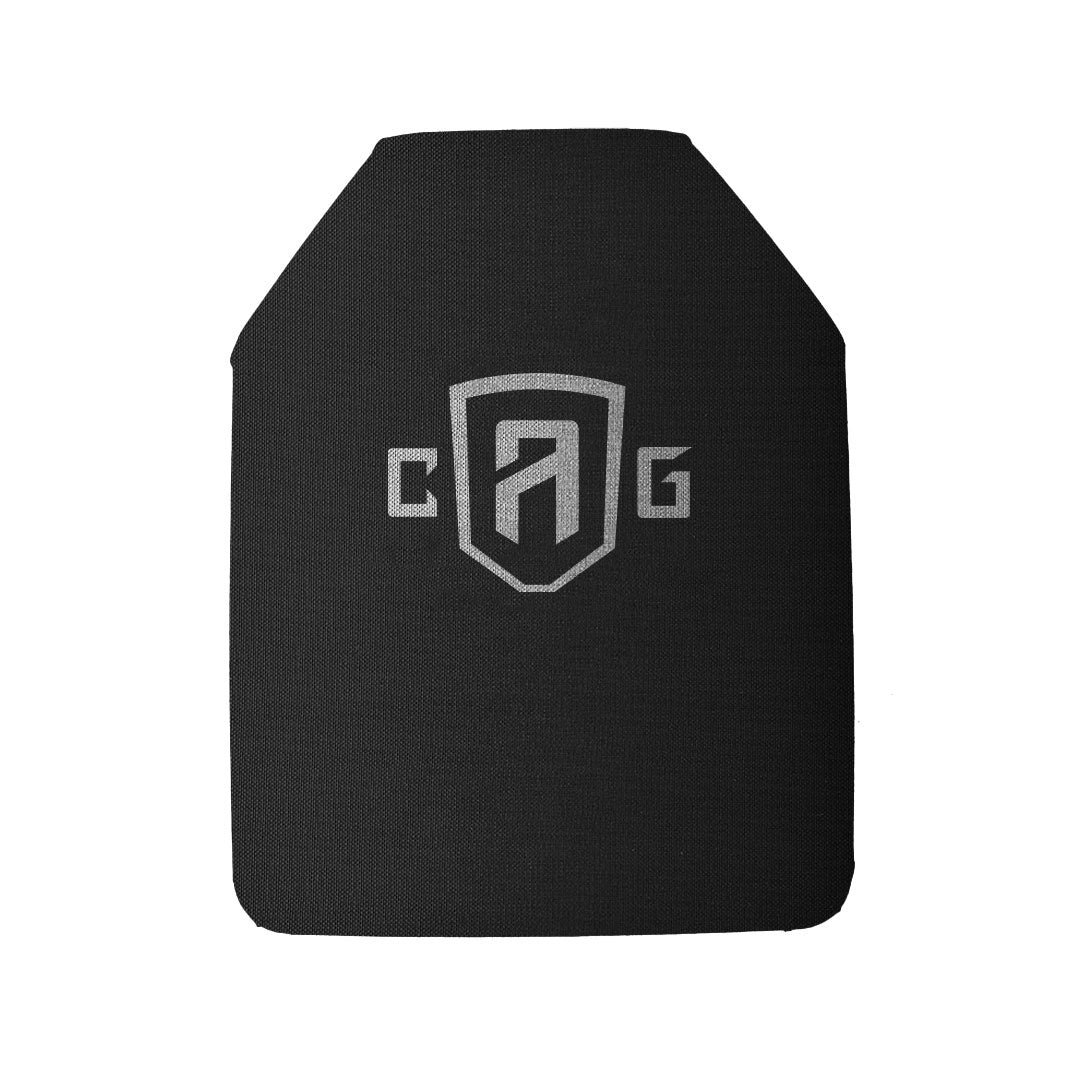

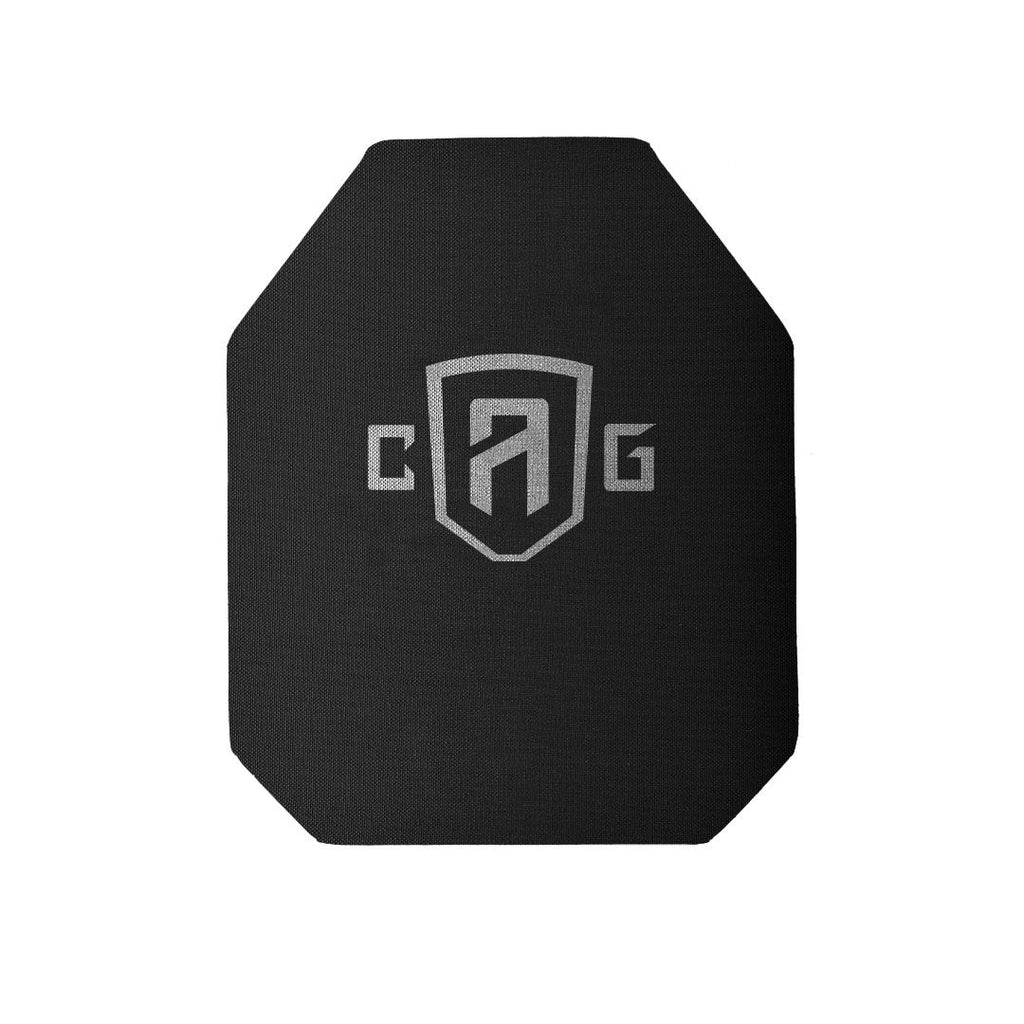

The CAG 3s18mTM is a lightweight Level III stand alone rifle armor plate. Engineered from UHMWPE, the 3s18m features a multi-curve profile, positive buoyancy, and multi-hit protection. The 3s18m is NIJ 0101.06 certified compliant and listed on the NIJ’s CPL (Compliant Product List).
FEATURES
- Protection: Level III Stand Alone High Velocity Rifle Rounds
- NIJ Standard 0101.06 CERTIFIED: This product is NIJ 0101.06 compliant and can be found on the NIJ’s CPL (Compliant Product List)
- RST: Rifle Special Threats Validated
- Key Advantages: Positive Buoyancy, Lightweight, Multi-Hit Capability
- Material: Super lightweight UHMWPE based hard armor plate
- Exterior Cover: 1000D CORDURA®, Textured Nylon
- Thinness: 1.25” or 32mm
- Cuts: Shooter (SC) and SAPI (10”x12” SC is considered nominal 9.5”x11.5” dimensions)
- Warranty: 10 years on all ballistic material excluding exterior cover, 1 year on exterior cover material/ workmanship
| Size | Curvature | Cut | Weight |
|---|
| 10”x12” | Multi Curve | Shooter Cut | 2.9 lbs / 1.3 kg |
| 7.25”x11.5” | Multi Curve | SAPI (XS) | 2.2 lbs / 1.0 kg |
| 8.75”x11.75” | Multi Curve | SAPI (S) | 2.8 lbs / 1.3 kg |
| 9.5”x12.5” | Multi Curve | SAPI (M) | 3.3 lbs / 1.5 kg |
| 10”x13.25” | Multi Curve | SAPI (L) | 3.8 lbs / 1.7 kg |
| 11”x14” | Multi Curve | SAPI (XL) | 4.2 lbs / 1.9 kg |
BALLISTIC ROUNDS TESTED
| Standard | Weapon | Projectile | GR | VEL FT/S | VEL M/S | (+/- FT/S) |
|---|
| NIJ 0101.06 | Rifle | 7.62mm FMJ, Steel Jacketed Bullets (M80) | 147 | 2780 | 847 | (+/- 30) |
| Special | Rifle | 7.62 x 39mm Mild Steel Core | 123 | 2400 | 731 | (+/- 50) |
| Special | Rifle | 5.56 x 45mm M193 FMJ | 55 | 3250 | 991 | (+/- 50) |
