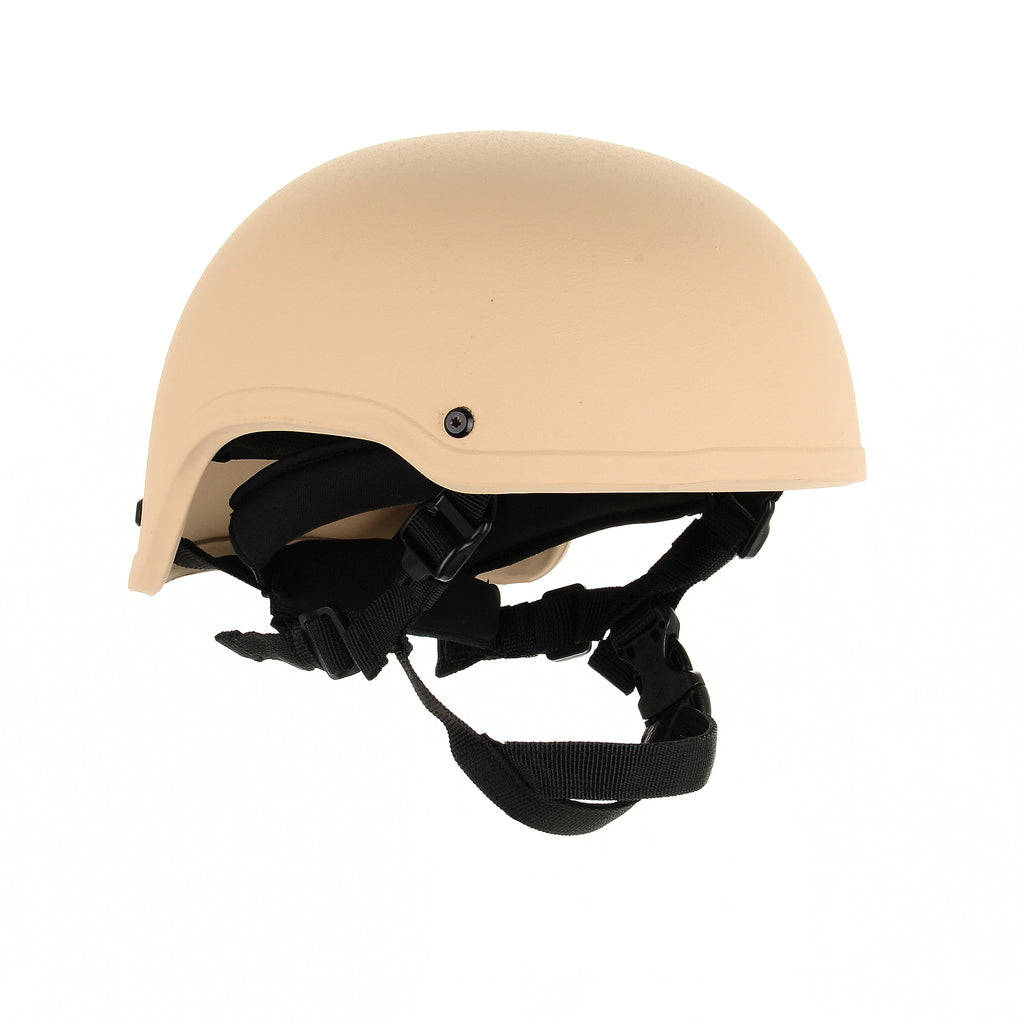

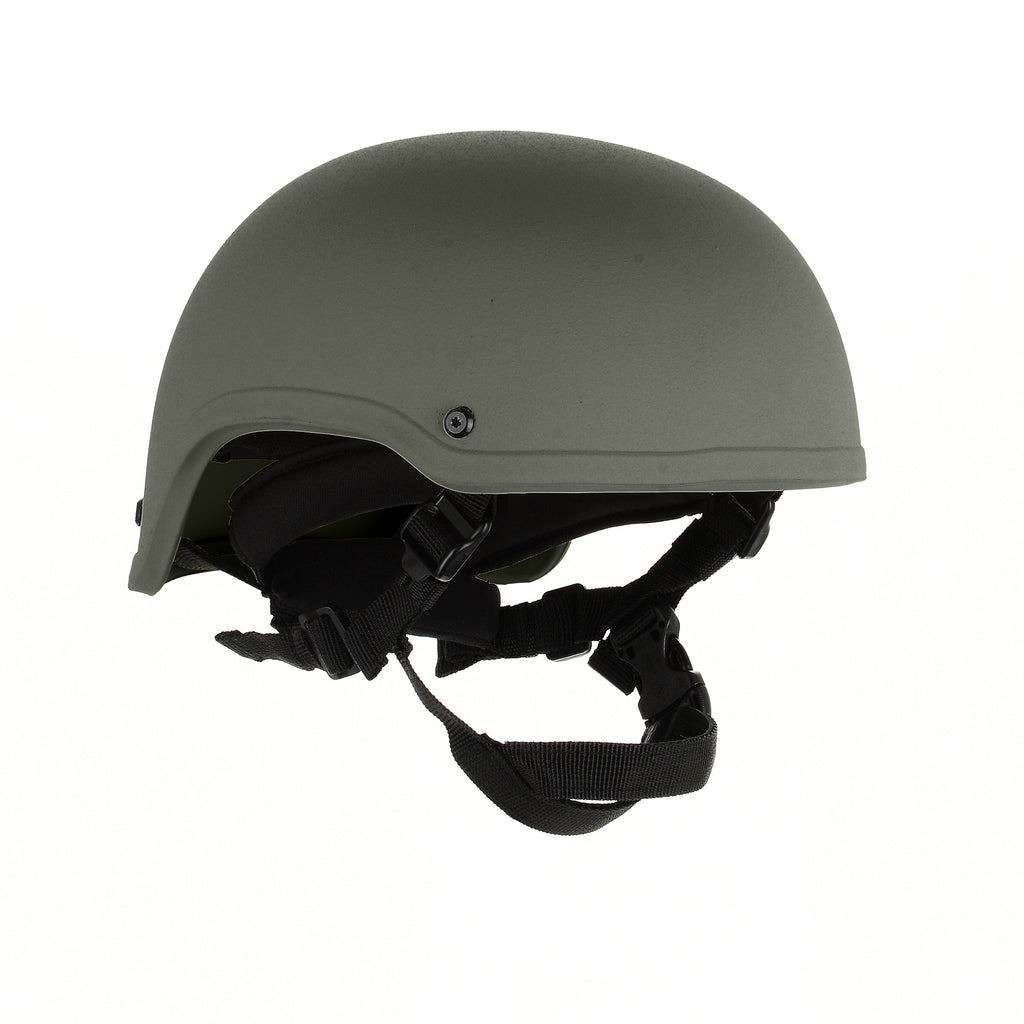

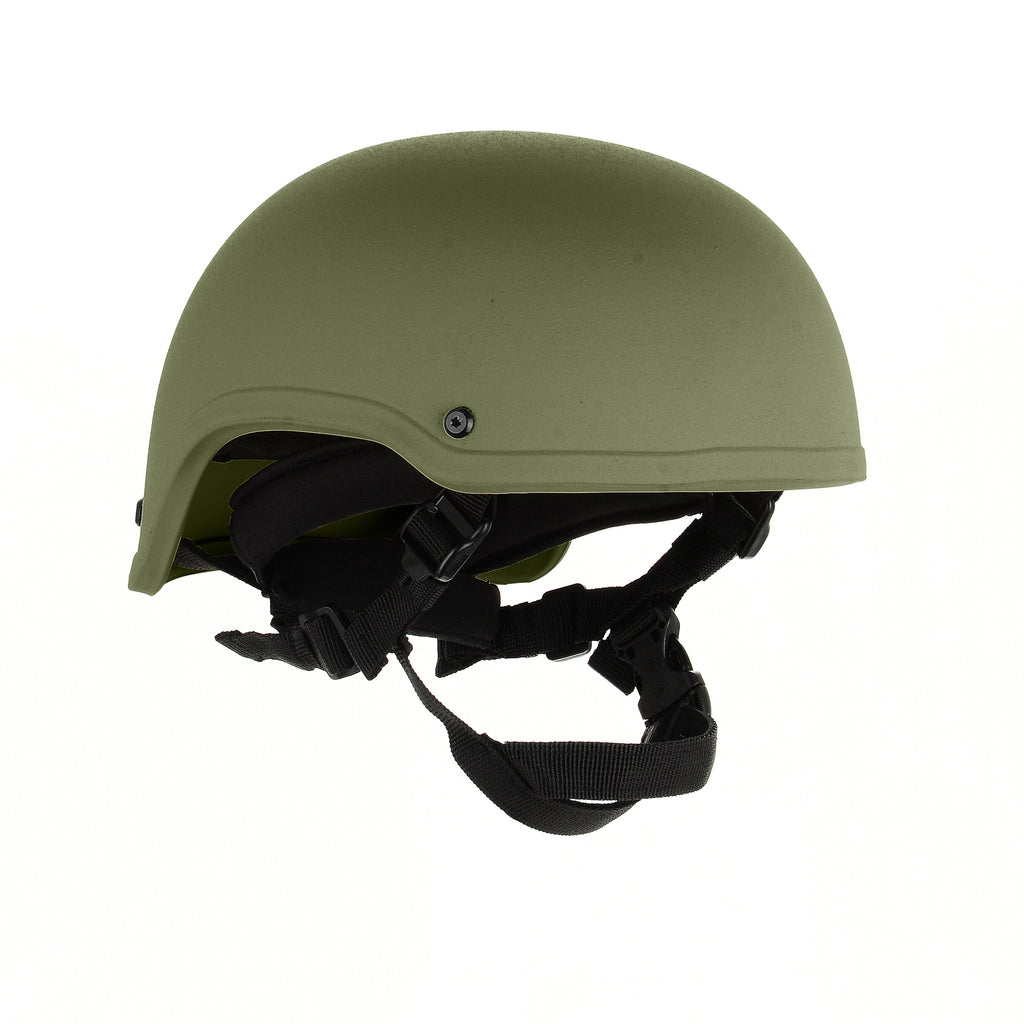

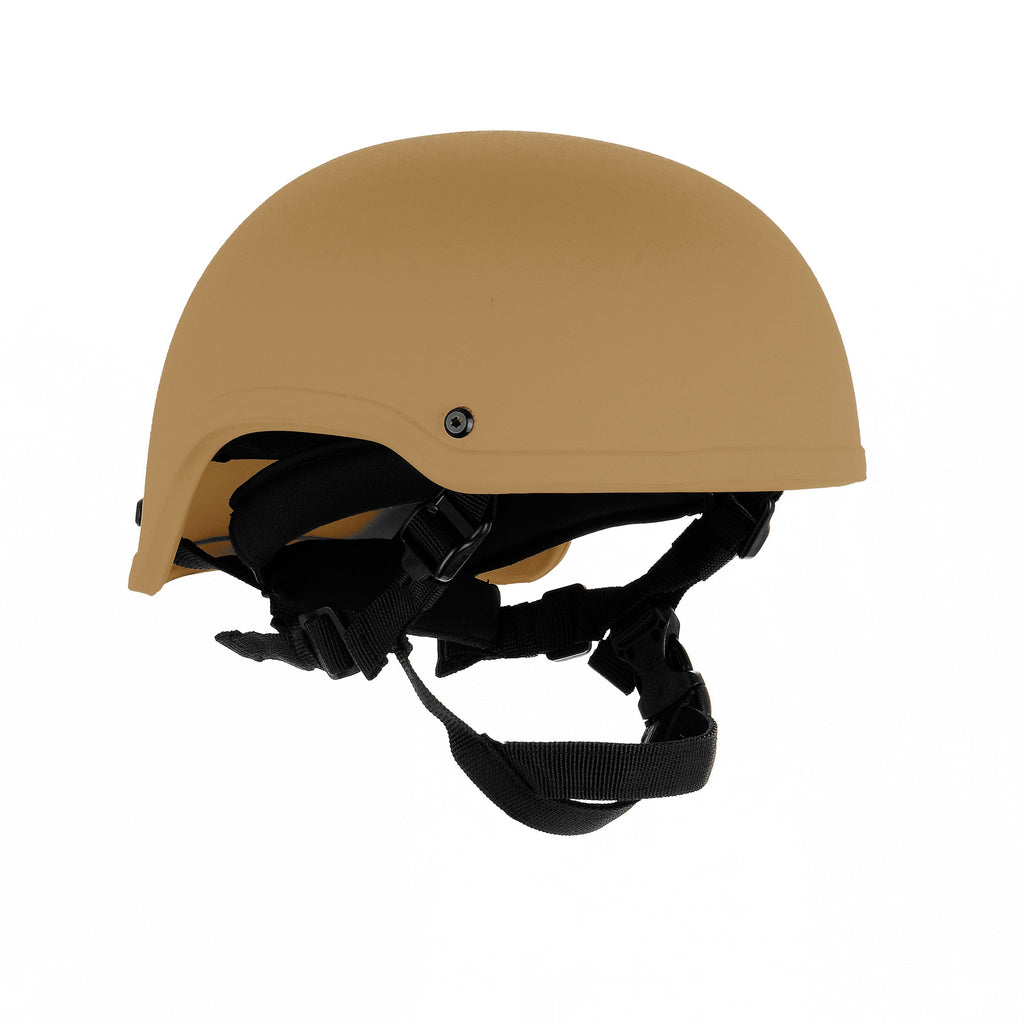

The CAG 501 ULHC™ (Ultra Light Advanced Combat Helmet) is our lightest ACH high cut helmet. It provides level IIIA protection against frag and has undergone testing according to NIJ Standard 0106.01. Constructed with UHMWPE Spectra fibers, the 501 ULHC comes equipped with the CAG 8 Pad Comfort System as a standard feature. Multiple harness options are also available.
- Ultra-Light (UL): Significant weight reduction for enhanced mobility and extended wear
- Protection: Level IIIA including frag protection
- NIJ Standard 0106.01 TESTED: This product has been independently tested by an NVLAP accredited NIJ approved laboratory to meet or exceed ballistic resistance as specified under NIJ Standard 0106.01
- MIL-STD 662F: This product has been independently tested by an NVLAP accredited NIJ approved laboratory against FRAG resistance as specified under MIL-STD 662F
- Materials: UHMWPE Spectra® fibers and thermoset resin shell construction
- Head Protection: Front, back, crown, and side of the head
- Weight Tolerance: +/- .15lbs / .068kg
- Adjustable Harness: Multiple harness options available
- Padding: CAG 8 Pad Comfort System.
- Sizing: Circumference is measured around the head, similar to hat sizing. All sizes are measured in inches. If a measurement falls on a dividing line between sizes, select the larger of the two sizes to ensure maximum ballistic protection.
- Warranty: 10 years on all ballistic material excluding exterior cover, 1 year on exterior cover material and workmanship
Size | Length | Width | Circumference | Weight |
---|---|---|---|---|
S | 7.1" to 7.6" | 5.6" to 6.0" | 21.1" to 21.9" | 1.7 lbs / 0.8 kg |
M | 7.6" to 7.9" | 6.0" to 6.3" | 21.9" to 22.7" | 1.8 lbs / 0.8 kg |
L | 7.9" to 8.3" | 6.3" to 6.5" | 22.7" to 24" | 2.0 lbs / 0.9 kg |
XL | 8.3" to 8.8" | 6.5" to 7.1" | 24" to 26" | 2.2 lbs / 1.0 kg |
STANDARD | WEAPON | PROJECTILE | GR | Vel ft/s | Vel m/s | (+/- ft/s) | (+/- m/s |
---|---|---|---|---|---|---|---|
NIJ 0106.01 | Handgun | .357 Magnum Jacketed Soft Point (JSP) | 158 | 1395 | 425 | (+/- 50) | (+/-15) |
NIJ 0106.01 | Handgun | 9mm Full Metal Jacketed Round Nose (FMJ RN) | 124 | 1400 | 427 | (+/- 30) | (+/-9) |
NIJ 0106.01 | Handgun | .44 Magnum Semi Jacketed Hollow Point (SJHP) | 240 | 1400 | 427 | (+/- 30) | (+/-9) |
STANDARD | WEAPON | PROJECTILE | GR | Vel ft/s | Vel m/s | (+/- ft/s) | (+/- m/s) |
---|---|---|---|---|---|---|---|
MIL-STD-662F | Frag | US MIL-STD Frag 2 gr. RCC | 2 | 4200 | 1280 | 4644 | 1415 |
MIL-STD-662F | Frag | US MIL-STD Frag 4 gr. RCC | 4 | 3475 | 1059 | 3708 | 1130 |
MIL-STD-662F | Frag | US MIL-STD Frag 16 gr. RCC | 16 | 2475 | 754 | 2547 | 776 |
MIL-STD-662F | Frag | US MIL-STD Frag 64 gr. RCC | 64 | 1750 | 533 | 1743 | 531 |
MIL-STD-662F | Frag | US MIL-STD Frag 17 gr. FSP | 17 | 2200 | 671 | 2393 | 729 |
