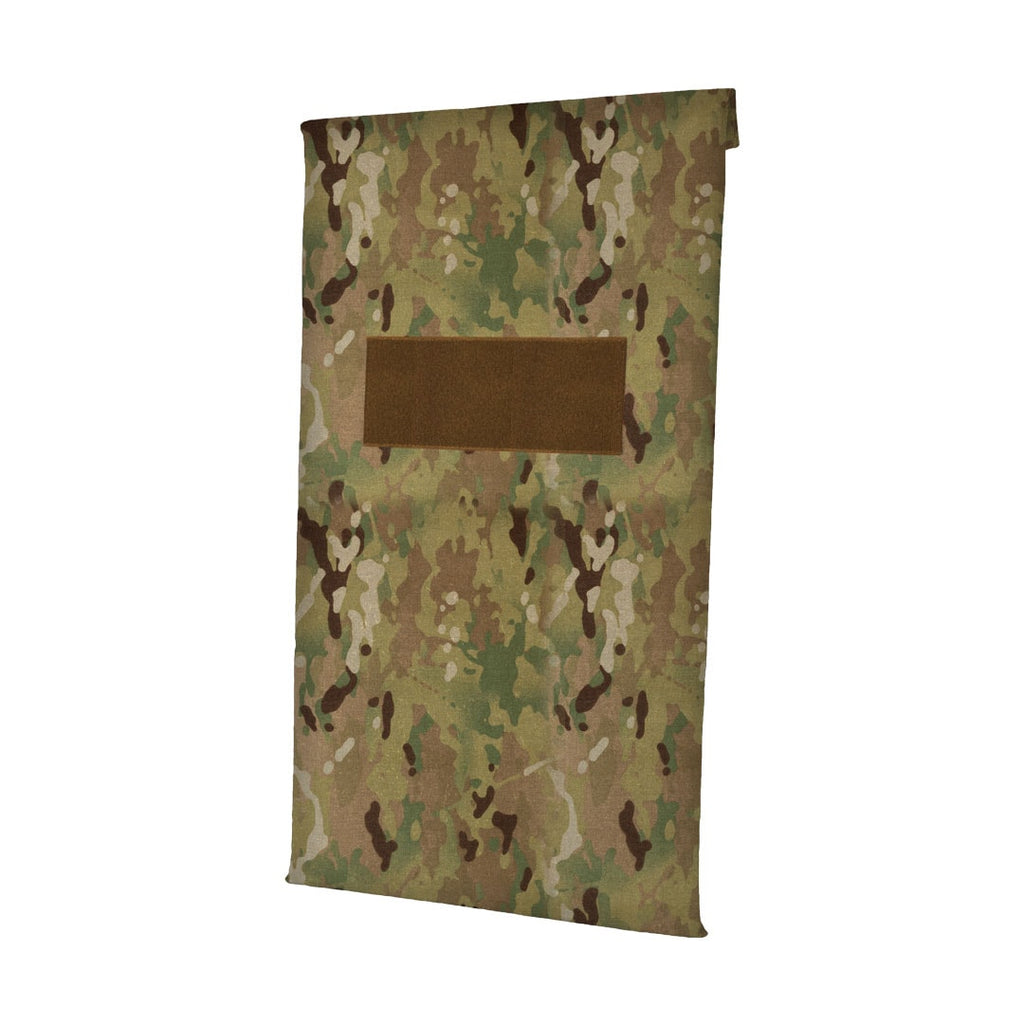

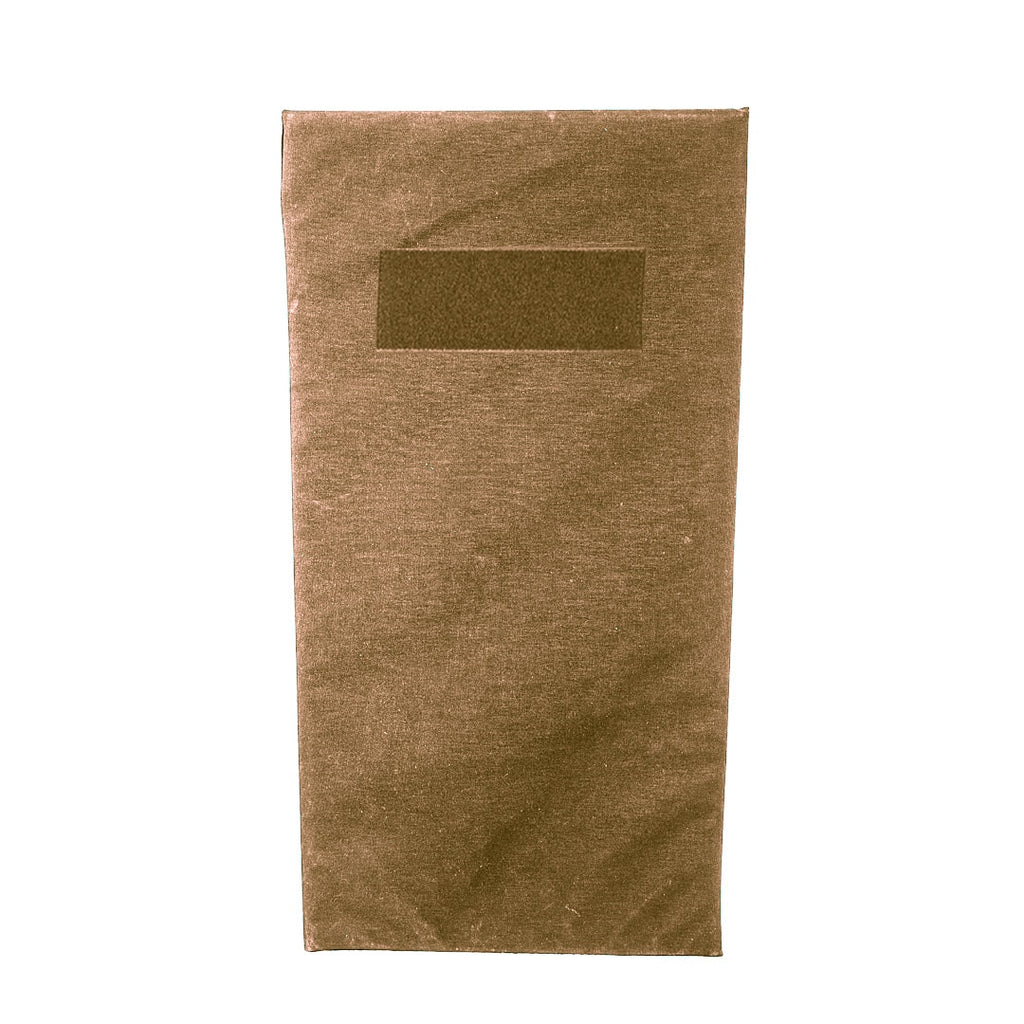

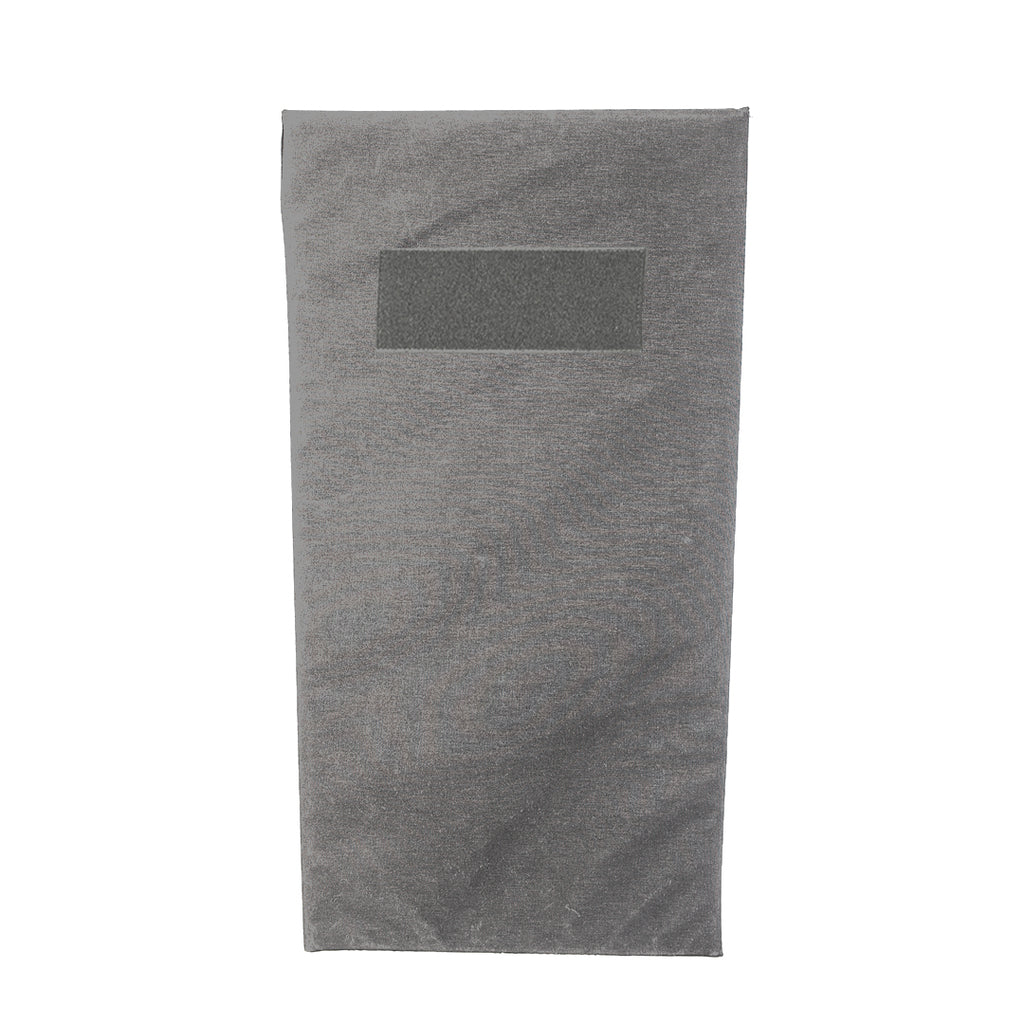

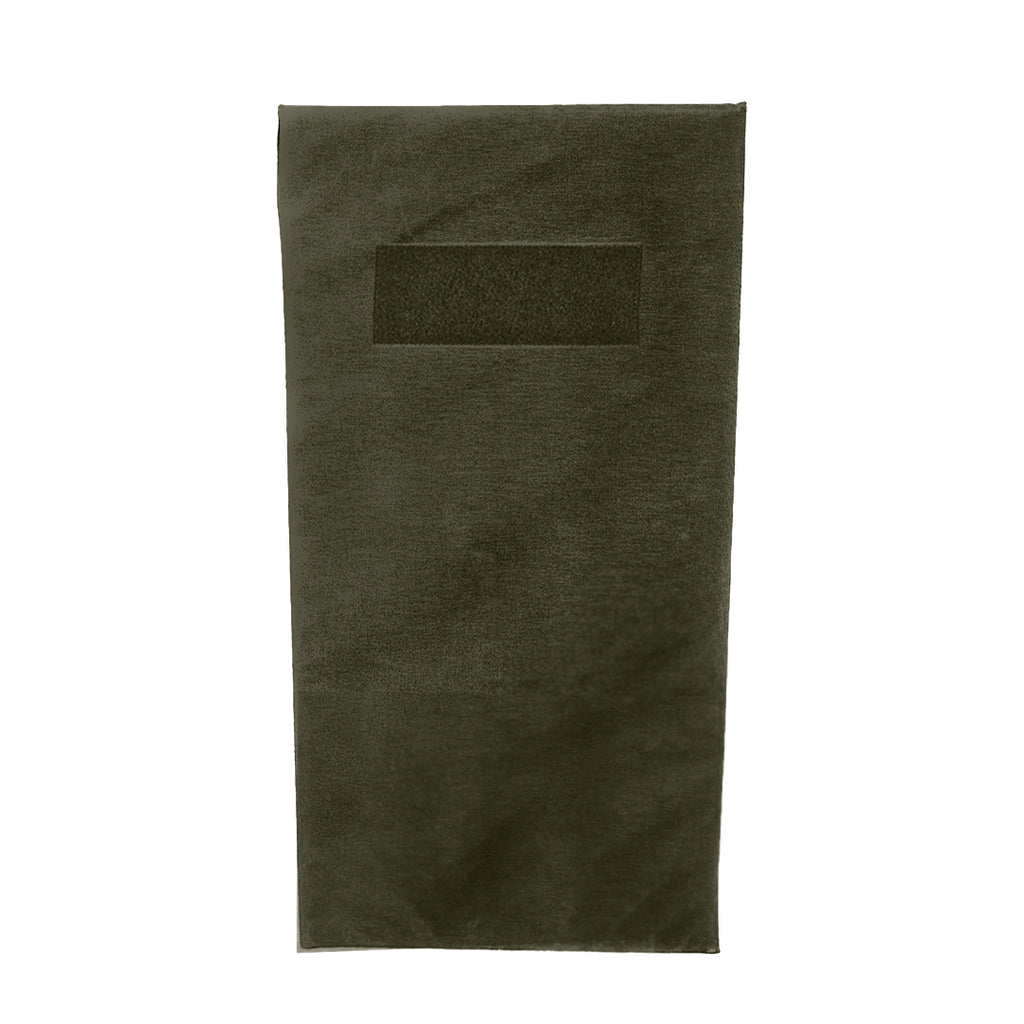

The CAG FRS™ (First Responder Shield) is available in two threat levels IIIA and III, therefore providing either stand alone protection from handgun rounds or rifle rounds. Engineered with UHMWPE, the FRS has been independently tested by an NVLAP accredited NIJ approved laboratory to meet or exceed ballistic resistance as specified under NIJ Standard 0108.01.
- Protection: Level IIIA stand alone against handgun rounds or Level III stand alone against rifle rounds
- NIJ Standard 0108.01 TESTED: This product has been independently tested by an NVLAP accredited NIJ approved laboratory to meet or exceed ballistic resistance as specified under NIJ Standard 0108.01
- Material: UHMWPE based material layup
- Thinness: Level IIIA 0.50” and Level III 1.25″
- Exterior Cover: 1000D®, Textured Nylon (removable/washable cover)
- Exterior Panel Finish: Polyurea with Rhino Extreme 1150Fr Anti-spall Coated System
- Handle: Nylon sewn ambidextrous handle configuration
- Optional LED Light: FoxFury B30 shield light
- Front Velcro: Strip for ID patch (fits 4″ x 10″ or 4″ x 14″ ID placard)
- DWR: Water resistant covers and optional FR fire-retardant treatment available
- Warranty: 5 years on all ballistic material excluding exterior cover and 1 year on exterior cover material and workmanship
| SIZE | WEIGHT |
| 16 x 29 | 5 lbs / 2.4 kg |
| 18 x 24 | 5 lbs / 2.3 kg |
| 18 x 34 | 7 lbs / 3.2 kg |
| 20 x 34 | 8 lbs / 3.6 kg |
| 20 x 40 | 9 lbs / 4.2 kg |
| 24 x 36 | 10 lbs / 4.5 kg |
| 24 x 48 | 13 lbs / 6.0 kg |
| 24 x 51 | 14 lbs / 6.4 kg |
| SIZE | WEIGHT |
| 16 x 29 | 15 lbs / 6.9 kg |
| 18 x 24 | 14 lbs / 6.5 kg |
| 18 x 34 | 20 lbs / 9.1 kg |
| 20 x 34 | 22 lbs / 10.2 kg |
| 20 x 40 | 24 lbs / 11 kg |
| 24 x 36 | 26 lbs / 11.9 kg |
| 24 x 48 | 38 lbs / 12.9 kg |
| 24 x 51 | 40 lbs / 18.3 kg |
| STANDARD | WEAPON | PROJECTILE | GR | VEL FT/S | VEL M/S | (+/- ft/s) |
| NIJ 0108.01 | Handgun | .357 Magnum Jacketed Soft Point (JSP) | 158 | 1395 | 425 | (+/- 50) |
| NIJ 0108.01 | Handgun | 9mm Full Metal Jacketed Round Nose (FMJ RN) | 124 | 1400 | 427 | (+/- 50) |
| NIJ 0108.01 | Handgun | .44 Magnum Lead SWC Gas Checked | 240 | 1400 | 427 | (+/- 50) |
| Special | Handgun | 9mm Full Metal Jacketed Round Nose (FMJ RN) | 124 | 1400 | 427 | (+/- 50) |
| Special | Handgun | .40 S&W, Speer Gold Dot Hollow Point (GDHP) | 165 | 940 | 287 | (+/- 50) |
| Special | Handgun | 9mm Luger, Speer Gold Dot II | 147 | 1015 | 309 | (+/- 50) |
| Special | Handgun | 9mm +P+ (SXT) | 127 | 1340 | 408 | (+/- 30) |
| Special | Handgun | .40 S&W JHP, Speer Gold Dot (GDHP) | 180 | 1240 | 378 | (+/- 30) |
| Special | Handgun | 9mm Luger JHP, Speer Gold Dot | 147 | 1136 | 346 | (+/- 50) |
| Special | Handgun | 5.7 x 28mm SS195, Lead Free Hollow Point (LFHP) | 27 | 2000 | 610 | (+/- 30) |
| Special | Handgun | 5.7 x 28mm SS197, Hornady V-Max Blue Tip | 40 | 1790 | 546 | (+/- 30) |
| STANDARD | WEAPON | PROJECTILE | GR | VEL FT/S | VEL M/S | (+/- ft/s) |
| NIJ 0108.01 | Rifle | 7.62 mm FMJ, steel jacketed bullets (M80) | 147 | 2750 | 838 | (+/- 50 fps) |
| Special | Rifle | 7.62 x 39mm Mild Steel Core | 123 | 2400 | 732 | (+/- 50 fps) |
| Special | Rifle | 5.56 x 45mm M193 FMJ | 55 | 3250 | 991 | (+/- 50 fps) |
| Special | Rifle | .223 Remington Tactical Bonded Soft Point | 62 | 2600 | 792 | (+/- 50 fps) |
